304 SS Standard with 316 SS available, Special Order
304 SS clamps are typically stock items.
316 SS clamps stocked in some sizes.
Non-stocked sizes may have 4–6 week lead time.
Aercor® 9″ Disc Membrane
Replacement Disc Model: Sanitaire® 9” Disc
Part Number: 00223
Material Diameter (US): 9” Diameter (Metric): 228.6 mm
Related Products

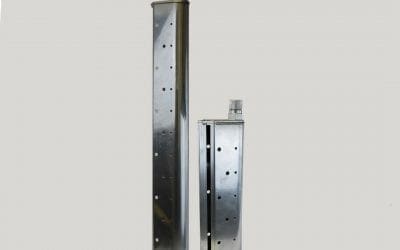

MaxAir SS CoarseAir Coarse Bubble Diffuser
Specifications:
Heavy duty 316 SS construction
3/4″ male NPT nipple for connection
Cast inlet and end cap
Continuous welded construction
Open bottom or closed bottom (with deflector) options
PermaCap Coarse Bubble Diffuser
Specifications:
Base and ring are constructed of ABS.
Base unit connection is 3/4″ or 3/8″ male NPT.
Standard diffuser membranes are EPDM.
Larger 5″ diameter for maximum air distribution
Spectrum Ceramic Saddle Diffuser
Base and ring are constructed of glass-filled polypropylene. Spectrum™ Saddle Mount withstands 200-pound edge load without failure with KlicLoc™ retainer for positive mechanical mount. Standard diffuser media is aluminum oxide. Available saddle sizes: 3″, 4″, 90mm, 110mm diameter pipe. Ceramic and membrane media options are interchangeable.
Integral Saddle Mounted Disc Diffuser
Exclusively available for 9” and 12” diameter discs
Glass fiber-reinforced polypropylene construction for maximum chemical, temperature, and UV resistance
Advanced technology premium-quality membrane materials available in EPDM and other special polymer blends
Triple-check valve design prevents entry of liquid/solids into piping. Ideal for on/off applications
Resistant to fouling and plugging for low maintenance
Integral Saddle Mount provides ease of installation and maintenance
High-capacity membrane option available for maximum airflow
and low operating pressure
Benefits:
3 times stronger than conventional mounting or push-on systems
Pre-assembled and leak tested in our facilities
Patented KlicLoc™ retainer for positive mechanical lock
T-Series Diffuser
The FlexAir™ T-Series diffuser unit is a fine pore, flexible membrane diffuser capable of providing a high level of oxygen transfer efficiency with maximum operating flexibility. T-Series units are configured with a premium quality EPDM rubber membrane sleeve specifically perforated for high volumetric air-handling capacity. For industrial and non-standard domestic applications, alternate membrane materials including urethane, silicone, and other specialty polymers are available. Alternate perforation patterns are available for energy sensitive applications or where maximum oxygen transfer efficiency is desired. EDI also offers a variety of sizes of diffusers to meet airflow requirements.
