We support engineers from the first design, contractors with the easiest installation processes, and plant operators over the full life of any aeration project.
That’s our AERATION FOR LIFE™ promise.
Whether municipal or industrial, dischargers can offload their specialized care and maintenance to EDI, for long-term performance and system reliability.
In order to rely on your aeration system, you want it designed by experts to meet your specific needs. For nearly half a century, EDI has been making customized aeration solutions accessible to all wastewater treatment plants with:
- Diffusers that distribute the air (including FlexAir® Pro fine-bubble discs, tubes, and panels; FlexAir® Basic 9-inch solvent-welded discs, CoarsAir™ coarse bubble diffusers, and EDI-exclusive StreamLine™)
- Membranes engineered to regulate bubble size, durability, and compatibility with specific treatment needs (including EPDM, PU, HTPU and EDI-exclusive Matrix™)
- Configurations of aeration platforms designed for optimum efficiency and lowest lifecycle cost (Fixed-Grid or ModuleAir™ Retrievable Configurations)
- Aftermarket Parts and Services to offer efficient installation and maintenance for all brands (through SiteWorks™ field service teams and Diffuser Express™ parts supply)
EDI is proud to be integrated with Nexom. Combining EDI with Nexom technologies, capabilities, and experience provides unique customer specific solutions. The EDI-Nexom team will guide you to a reliable treatment solution that is easy to maintain and operate.
What you’ll find on this page:
Solutions
- An overview of EDI engineered aeration technologies
- Fine-bubble aeration
- Coarse-bubble aeration
- BOD soluble organic loading removal
- Laboratory and field test services
- Installation and maintenance (takes you to our SiteWorks page)
Customers
- A directory to finding our solutions for different engineered aeration customers
- How we help consultants and engineers designing engineered aeration systems
- How we help municipalities with their engineered aeration needs
- A directory to our industrial-specific engineered aeration customers
The EDI Story
Advanced Aeration

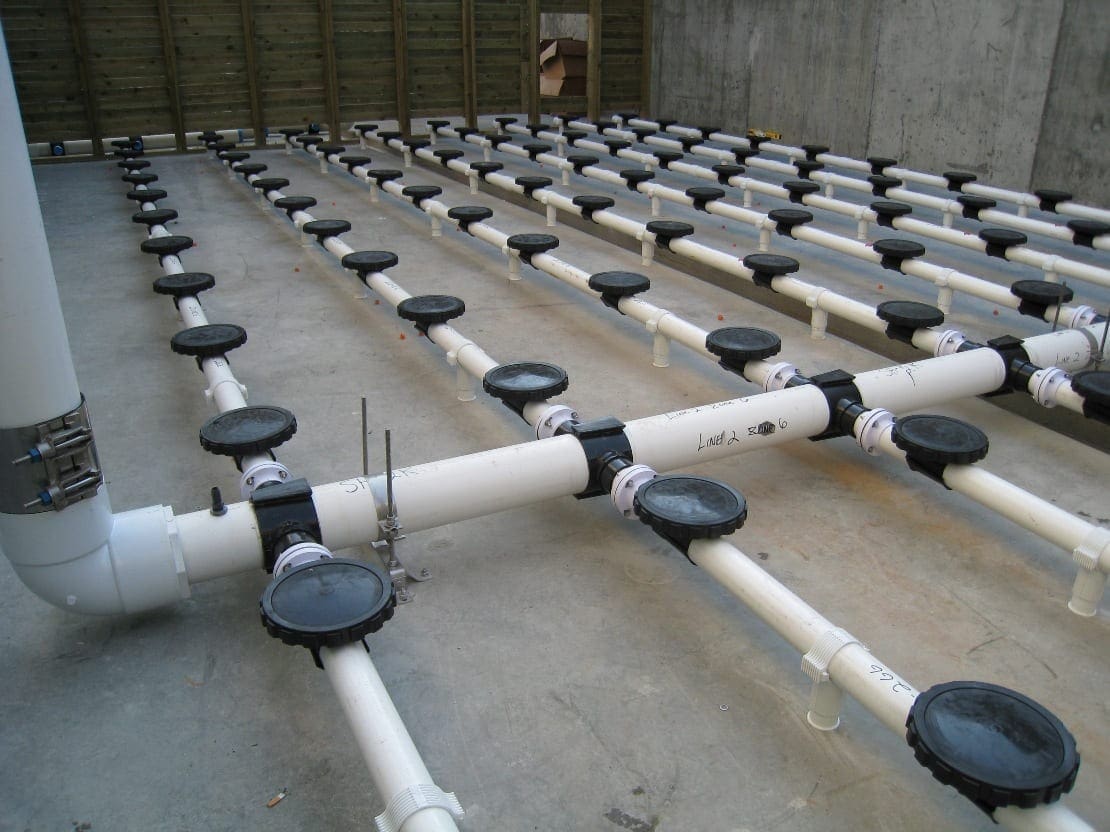

Optimal System Configuration and Design with Disc, Tube, and Panel Diffusers
Industrial Solutions
Design | Installation | Service
Diffuser Express
Suppliers of Diffusers, Replacement Membranes, and Specialty Diffuser Items Across All Brands
SiteWorks
System Evaluation | Installation | Maintenance | Service Contracts
High-Efficiency 9-Inch Disc Aeration
Introducing EDI's answer for specifications built around 9-inch solvent-welded disc aeration Learn more...
ENGINEERED AERATION
Our fine and coarse bubble aeration technologies are ready to form an integral part of your biological wastewater treatment systemIn most modern treatment systems, aeration is the critical component…
that adds the required air into wastewater so micro-organisms can break down contaminants and pollutants.
It is basically farming bacteria using air to treat wastewater. But it is more than just adding air to a system, to avoid using more energy than required for each situation and to meet or exceed limits, this biological process is optimized by engineering for desired flow, load, capacity, influent type, treatment process type, desired effluent quality, capital investment, operation costs, and energy savings. Add on our long-term maintenance and upgrade support and your wastewater treatment system will be fully cared for by our Aeration for Life promise. EDI has been providing aeration excellence while pioneering and revolutionizing aeration technologies for nearly half a century – since 1975.
How an EDI Engineered Aeration system works:
MOST SYSTEMS REGULATE BUBBLE SIZE AND DURABILITY USING
MEMBRANES
…WHICH ARE APPLIED TO AIR-DISTRIBUTING
DIFFUSERS
- FlexAir Basic 9-Inch Solvent-Welded Disc
- CoarsAir Hex
- CoarsAir Max
- CoarsAir Wide-Band (SS)
- CoarsAir PermaCap
- CoarsAir FlexCap
- CoarsAir AirCone
…THAT ARE MOUNTED IN SYSTEM-FRIENDLY
CONFIGURATIONS
…AND HAVE ONE POINT OF RESPONSIBILITY THANKS TO OUR
INSTALLATION & MAINTENANCE
SiteWorks™ teams provide expert installation & maintenance services
Diffuser Express® is your one-stop online shop for parts for all brands of aeration systems.
Maximum Performance and Flexibility to Optimize Your Aeration System.
Fine bubble aeration is a form of subsurface aeration that introduces air into water via very small (or fine) bubbles (<2mm in size).
The fine bubbles produced from the pores promote oxygen transfer though their higher collective surface area of air-water interface compared to coarse bubble systems; diffusing more air into the wastewater as a result.
The low buoyancy of fine bubbles also contribute to the high oxygen transfer. A slow rise to the surface allows more oxygen to transfer from the bubble, and to dissolve into the water at all levels before reaching the surface.
Fine bubble diffuser configurations are designed to be highly efficient; it provides 6–7 lb/O² hp-h, making it 40–60% more energy efficient than coarse bubble or other types of aeration systems.
Use SiteWorks for your complete single-source easy installation and upgrade to fine bubble aeration from any other system type.
Coarse bubble diffuser systems offer low-maintenance mixing.
Where oxygen transfer isn’t your limiting factor, EDI’s full-range of CoarsAir* coarse bubble diffuser platforms provide mechanical reliability, application flexibility, and ease of installation and maintenance.
The primary advantage of this technology is its robust design and ability to mix heavy concentrations of solids. There are no moving parts in the water and the large bubble orifices can be less prone to clogging; making this a robust solution for difficult aeration/mixing applications
Coarse bubble diffusers get their name from the type of bubble they produce, i.e. greater than 4mmØ bubbles. The diffusers are attached to a PVC or stainless steel air supply line fixed to the bottom of the treatment basin or tank. When large bubbles are released at the bottom, water is pulled toward the surface along with the large bubbles mixing the wastewater in the basin or tank.
*CoarsAir Includes, MaxAir SS and PVC, HexAir, PermaCap and other EDI coarse-bubble technologies
SOLUBLE ORGANIC BOD REMOVAL
Efficient oxygen transfer to help the bacteria already in your plant to remove nutrient pollution and break down solidsBiochemical oxygen demand (BOD₅) is the most widely used parameter applied to the study of wastewater. It is a measure of the dissolved oxygen required by microorganisms, such as algae or bacteria, to oxidize or decompose the organic matter present in wastewater.
Organic substances present in wastewater are typically molecules based on carbon that include fecal matter as well as detergents, soaps, fats, greases and food particles. Inorganic substances are a group of chemicals that contain no carbon and include ammonia, hydrogen sulfide, all metals, and other elements such as calcium and phosphorous.
Oxygen is required for microorganisms to break large molecules into smaller molecules and eventually into carbon dioxide and water. The amount of oxygen required for this process, BOD, is the most common measure of the strength of sewage.
The amount of dissolved oxygen in water is an important indicator of the life-supporting ability of a river or stream. Ecosystems are dependent upon adequate dissolved oxygen to remain healthy and productive, and wastewater with high concentrations of BOD deplete such Oxygen from these natural resources.
TO REMOVE BOD, YOU NEED TO
- Provide oxygen to the beneficial microorganisms in the wastewater treatment plant
- Keep a healthy population of such microorganisms in your wastewater treatment plant
- Treat wastewater before it hits the environment
Aerating with EDI’s FlexAir Pro fine-bubble aeration provides the options needed to best enable those microorganisms to thrive and to oxidize and decompose the organic matter present in the wastewater throughout the entire depth of the basin.
LABORATORY AND FIELD TEST SERVICES
Few things in life are certain. But knowing your system will work or is working can be one of them.Active wastewater treatment plants simply can’t be treated like an experiment, or have a technology supplier that just guesses what you need.
With our laboratory services and in-house testing facilities at both our Winnipeg and Columbia locations, as well as field-test unit and evaluation services, our team of engineers and Ph.D’s can help you get the assurance you need that your reaction kinetics are dialed in, your aeration performance metrics are precise, and much more. And you can access these services before, during, and well after you commit to our technologies.
Factory Aeration Testing Facilities for Oxygen Transfer
- Two Full Scale Tanks
- 8’ x 25’ floor area x 16’ deep (22,000 gal)
- 10.7’ x ~18.7’ floor area x 29’ deep (42,000 gal)
- 75hp Blower for Air Supply
Instrumentation
- Dissolved Oxygen Probes
- TDS/Conductivity Meter
- Various other Sensors (flow, temperature, pressure, etc.)
- Data Acquisition System with Data Logging
- Underwater Cameras
Offgas Oxygen Transfer Testing
- 1,000 gal column reactor
- Three compressors to provide various required airflows
- Instrumentation
- DO Probe
- Offgas measurement panel
- Data Acquisition System
Materials Lab
- Tensiometer
- Two extraction apparatuses (measures extractable oil)
- Incubator Oven (0 – 290°F / 2.4cu.ft.)
- Filtration Pump
- Test Tank (25gal)
R&D Lab
- Four Tanks (100 – 150 gal)
- Multiple compressors to provide various required airflows
- Cycling timers
- Temperature control capabilities for water and air
- One 7’, 950 gal Tank with 10 HP Blower
- Compression Vessel (to simulate tests at greater depths)
- Fixture for Fatigue Analysis
- Hydraulic Lifting Rig with Load Cell (2,000 lbs.)
- Incubator
- Instrumentation
- Data Acquisition System
- Various Sensors (flow, temperature, pressure, etc.)
- Underwater Cameras
- Field Instrumentation
- Colorimeter (NH₃, NO₃, NO₂)
- 3D velocimeter
- Sludge Judge
- Settleometer
It starts with you.
We can talk all day about aeration, but unless we are meeting your needs, we haven’t done our job.
Many of our customers fall into the following groups. Don’t find yourself represented? Please reach out so we can help you meet your wastewater aeration goals, too.
CONSULTANTS AND ENGINEERS
Equipping you with the precise tool for the job, but also the confidence it will get done right.We’ve designed our processes and hardware with engineers in mind.
From introduction through implementation, we supplement engineers and consultants’ workflow to satisfy your municipal/industrial clients by expediting the entire project, providing superior technologies and offering responsive service throughout.
Allow EDI support you with unique process design and high-value engineered solutions. We offer a wide range of high-quality diffused aeration products that you can trust, and providing optimized energy efficiency, performance, as well as lifelong maintenance and upgrade services for your client.
Submit your RFP
...or simply reach out to our friendly staff and have them walk you through the details we need. Yes, you can get started today!
Design-Support
You receive design support and final design-ready drawings, with the support of our expert engineers who work with you to identify the solution to your wastewater treatment requirements.
We Supply Our Exclusive Technologies
Our exclusive technologies will set your project apart and are delivered to site on time to keep contractors on schedule and accountants happy. Our qualified staff commissions our installations, assuring clients that our technologies work to specification and equipping operators with the knowledge they need from day one.
We stand behind our Aeration for Life™ promise
We will be your partner in treatment, long after the shovels and hardhats have left the site. Our support teams ensure our technologies exceed expectations, and they equip operators with the knowledge they need to keep it that way. Throughout the long life of the technology, our friendly SiteWorks staff is ready to supply any needed service, and likewise our Diffuser Express team with the parts you need.
We honor our heroes by giving them our very best.
Since 1975, EDI has been innovating, perfecting, and revolutionizing aeration technologies for cities, utilities, and operators of a vast network of publicly-owned municipal wastewater treatment plants that are working hard to restore and maintain the chemical, physical and biological integrity of the world’s waters. These plants treat municipal wastewater collected from homes, businesses and industries before it is discharged to water bodies or land; and still remain the first line of defense against water pollution as the biggest growing infrastructure to ensure access to cleaner water by the general population on a global space.
We call the cities, utilities, counties, towns, and all the operators of municipal wastewater treatment plants our heroes of cleaner water. To provide them with aeration technologies to ensure long-term compliance and peace of mind is our biggest mission.
With thousands of municipal plants using our aeration diffusers and systems, we talk to municipal partners and plant operators daily. We know the pain points well. We see how aging infrastructure has left many wastewater treatment facilities performing below expectation. Those plants require further improvement, repair or replacement to stay in compliance with stringent regulatory requirements and maintain their useful life to serve growing population. Our SiteWorks™ service crews and Diffuser Express™ aftermarket parts resource are there to ensure lifetime source of aeration parts and maintenance/upgrade services for all brands for the lifecycle of Municipal Treatment Plants.
We are here to make it easy on you, offering turnkey integrated solutions with aeration, diffusers, blowers, mixers, controls, and services all put together to meet your budget and treatment goals. We have the range of products, technologies, and design solutions to ensure best resource utilization with your capital investment and operating expenses, so that your lifetime cost of ownership is optimized. Plus, our aeration systems have proven to save up to 50% in energy cost.
What our municipal clients say about us:
Sonoma, California
Aeration upgrade allows winery to minimize energy consumption and double handling capacity during their peak season.
California, Mo
Plant upgrade allows simplified maintenance and room for future expansion while meeting compliance.
Menominee, Mi
Plant upgrades aeration system for lower power consumption and increased operating flexibility.
Plant City, Florida
EDI aeration helps 10 MGD municipal plant win multiple awards for performance while cutting energy usage in half.
Our installations and technology treat wastewater from many industries.
We have experience in most types of industrial wastewater
To learn more about what we have done for various industries and what we can provide for your project, choose an industry below.
Have a treatment need that will require a custom fit and advance testing?
Consider our testing programs. Contact Engineering today.
EDI has been leading the wastewater aeration revolution since 1975.
We are focused on helping our municipal and industrial clients manage their environmental impact with the lowest possible lifecycle cost. EDI is recognized for excellence in exports and has received numerous awards including: State of Missouri “Small Business Exporter of the Year” Award and US Dept. of Commerce President’s “E” Award for Excellence.
Founded in 1975 with a focus on Biological Treatment and Advanced Technology Diffused Aeration Systems, the company continues to grow with its diverse product portfolio and unparalleled service capabilities; offering integrated aeration system solutions for Municipal and Industrial Water Reclamation Facilities. The corporate campus in Columbia, Missouri, USA is the R&D, engineering and design management, and manufacturing center for the organization; featuring world-class test facilities for oxygen transfer, material performance, and product design.
EDI continues to support new plant construction, existing facility upgrades, and long-term infrastructure demands on a global scale. To support our global customer base, we have created a network of direct sales representatives and local independent partners. In addition to sales support from the corporate offices, EDI maintains international offices in United Kingdom, Germany, Romania, Mexico, Japan, India, Singapore, and UAE. EDI diffused aeration products have been installed in over 8,000 aeration systems in over 100 countries serving over 400 million people.
In June 2020, EDI integrated into Nexom after having been acquired by KKR and XPV Water Partners. This integration empowers EDI for a much stronger position in the global market with enhanced, synergistic capabilities and a wider range of solutions in our integrated portfolio of biological treatment and filtration technologies.
