MENOMINEE, MIPlant upgrades aeration system for lower power consumption and increased operating flexibility.
Project Type: Municipal Wastewater Treatment Plant
Completion Date: March 2010
Treatment Objectives: Reduce Power Usage by 56%
Download a Printable Version
You may also be interested in:
Symphony Model Based Digital Solution at City of Lebanon, PA
Symphony Model Based Digital Solution at City of Lebanon, PA WWTP: Precise and Accurate Control Performance without any Retuning - 8 Years and Counting... Summary The upgrade of secondary wastewater treatment plants to meet stringent nutrient effluent standards...
Over 40% Energy Savings per Month: Jet Aeration Upgraded to EDI Fixed Grid Fine Bubble System
Conversion of Jet Aeration to EDI Diffused Aeration System Contract wastewater operators Alliance Water Resources (AWR) for the City of Bowling Green, MO desired to reduce overall operating costs at the facility. The existing positive displacement blowers, jet...
Project Background & Challenges
In 2009, the city of Menominee, Michigan decided its wastewater treatment plant was consuming excessive electrical power and faced a much-needed upgrade. The plant was using a 1,044-unit ceramic disc system with an acid gas cleaning system. This system, installed in 1988, was deteriorating and needed to be replaced. The city worked with Honeywell Energy Services Group to reduce the city’s electrical power consumption under a guaranteed contract. The city’s wastewater treatment plant had a significant potential to reduce power consumed, specifically in the activated sludge process as its existing ceramic disc system consumed 1,800 kWh per day.
The EDI Solution

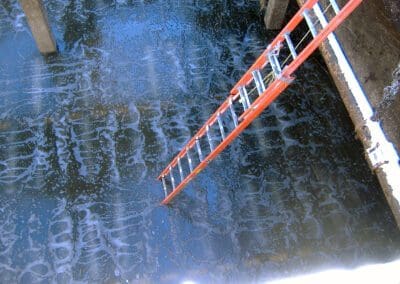

Honeywell contracted with Energenecs (EDI’s representative in the area) and EDI to provide a cost-effective solution. The City wanted a new system offering operating flexibility and low power consumption. Honeywell evaluated several options and selected the option providing the highest system efficiency. EDI installed a FlexAir® Pro Panel Fine Bubble Aeration System with a membrane density exceeding 30 percent. Energenecs provided positive displacement blowers and an advanced dissolved-oxygen monitoring system. This new control system allows the plant to monitor the levels of dissolved oxygen in the basin, so that it can more accurately gage the amount of air the pumps are required to provide throughout a 24-hour period. This further reduces the electric power consumption during periods of low oxygen demand.
Upgraded System Performance
Initially, the new EDI aeration system paired with the existing blowers and controls reduced the electrical power consumption from 97 Bhp to 43 Bhp. Once the new blowers and control system were in operation, the electrical power consumption was reduced by an additional 12 percent, bringing the total reduction to 56 percent. This translated into an average annual savings of $29,000. The new system paid for itself in 2016. “Working with EDI was great,” Mike Thorsen, Infrastructure Alternatives employee and Menominee Plant Superintendent, said. “The guys we worked (with) were efficient and easy to work with. The plant has been running smoothly since putting in the system.”
|BEFORE IMPROVEMENTS||AFTER IMPROVEMENTS||REALIZED POWER SAVINGS|
|Ceramic Disc w/Gas Cleaning System||EDI Curved Panel Aeration System||$26,000-$32,000 Annually|
|Power Consumption: 97 Bhp||Power Consumption: 43 Bhp||Installed System Cost: $150,000|
|DO level: 5-7 mg/L||DO level: 5-7 mg/L||ROI Date: 2016|
“Working with EDI was great. The guys we worked (with) were efficient and easy to work with. The plant has been running smoothly since putting in the system.” -Mike Thorsen, Menominee Plant Superintendent
