3

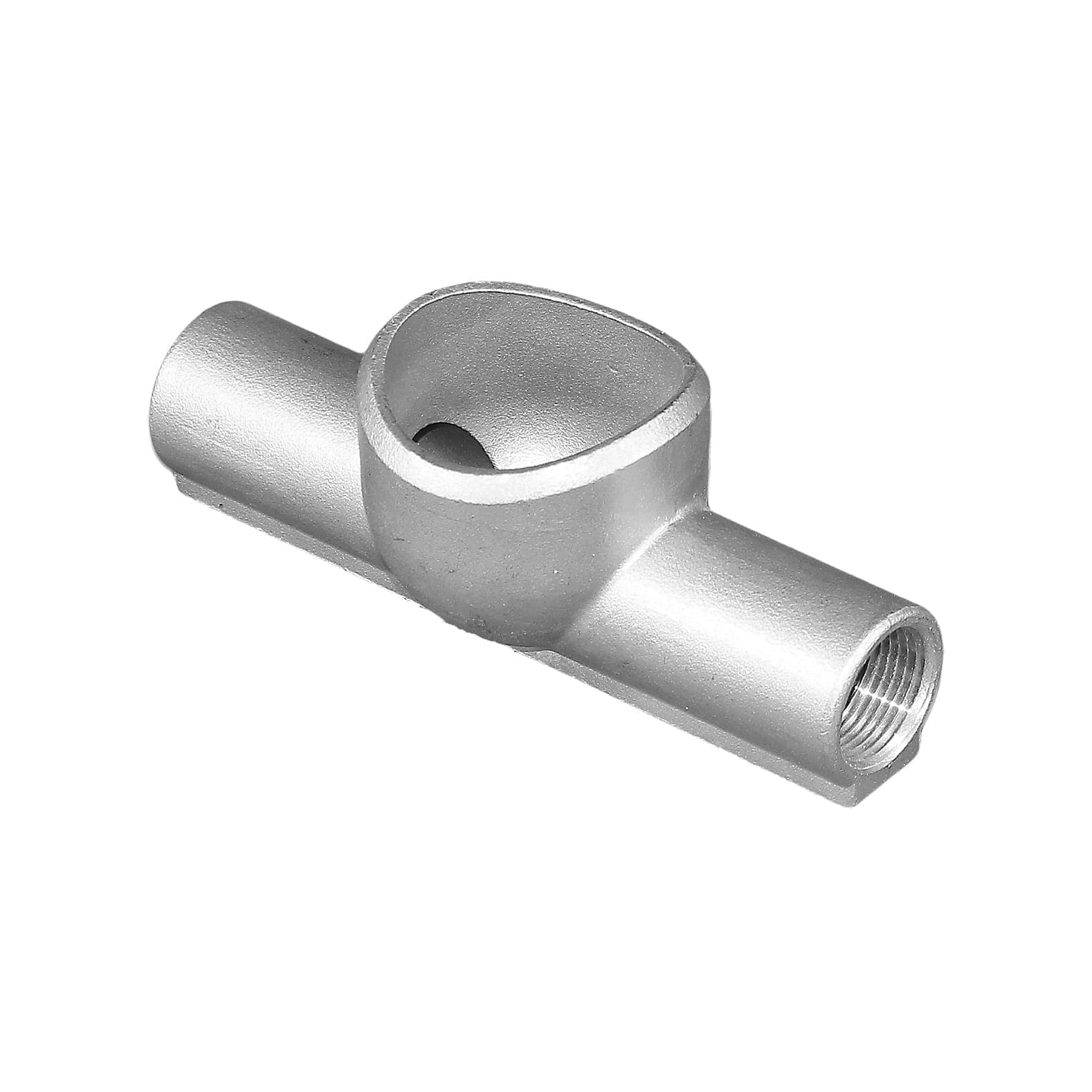

EDI 316 SS Cast Diffuser Mount
The special 316SS diffuser mount tee is designed to mount 3/4-inch coarse bubble or fine bubble threaded tube diffusers on SS pipe. The mount is cast for maximum strength. A large diameter pipe contact area reduces pipe fatigue, making the diffuser mount suitable for even thin wall pipe. A special leveling bar on the bottom of the mount is utilized during the fabrication process to ensure diffusers will be level when installed. The 316SS material can be used with either 304SS or 316SS pipe.
Order EDI 316 SS Cast Diffuser Mount

Related Products

Thru-Tube Mounting Connection Kit
Thru-Tube Mounting Connection Kit

The Thru Tube Mounting Connection Kit consists of a stainless steel nipple with air inlet holes and two special EPDM rubber gaskets. The gaskets provide a seal and also serve as a bushing to hold the assembly in the center of the air piping. The stainless steel nipple joins the two diffusers to complete the connection. The kit is designed to mount T-Series diffusers to square or rectangular air piping. Reference the diffusers in the T-Series section to select the proper diffuser for your application. Call for part number and pricing. Specify the air piping cross section dimension as well as the diameter of the outlet holes.

read more
